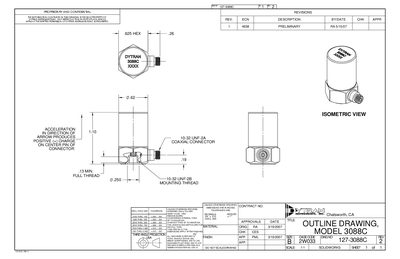

This document is the proprietary and confidential information of DYTRAN INSTRUMENTS INC. Reproduction of the document, in whole or in part, without the written permission of DYTRAN INSTRUMENTS INC is prohibited. The document contains isometric views and specifications of the product.
The Dytran 3088C Charge Mode Accelerometer is a stainless‑steel, side‑mounted sensor designed for high‑g vibration and shock measurement. It features a 10‑32 coaxial connector and a mounting stud for easy installation.
The document lists detailed specifications including weight, dimensions, sensitivity, frequency response, temperature range, and electrical characteristics, and notes the supplied mounting stud accessory (model 6200).
| Weight | 42 grams |
|---|---|
| Size | 0.625 x 1.07 inch |
| Mounting provision | 10-32 stud |
| Connector (side mounted) | 10-32 coaxial |
| Case/connector material | Stainless steel |
| Sensitivity | +3.0/-0.0 (NOM) 10 pC/g |
| Frequency response | +/+ 5% to 5000 Hz |
| Mounted resonant frequency | 30 kHz |
| Transverse sensitivity | max 3 % |
| Maximum vibration | +1000 g |
| Maximum shock | 3000 gpk |
| Temperature range | -65 to +600 °F |
| Thermal sensitivity coefficient | < .018 PF |
| Capacitance | 370 pF |
| Supplied accessory | Mounting stud, model 6200 (10-32 to 10-32) |
The accelerometer weighs 42 grams.
It has a frequency response of +/+ 5% up to 5000 Hz.
It operates from –65 °F to +600 °F.
The device uses a 10‑32 stud mounting provision.
