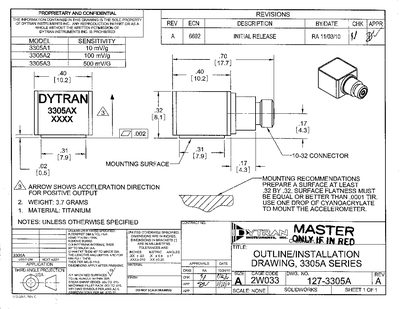

This handbook describes the Dytran 3305A1 single‑axis IEPE planar shear accelerometer, including its physical dimensions, electrical characteristics, and environmental limits. It also contains revision history, drawing conventions, and application notes.
Key sections cover model sensitivity, mounting recommendations, performance specifications (physical, electrical, environmental), and detailed drawings. The document is intended for engineers who need to integrate the sensor into test equipment or measurement systems.
| Sensitivity (3305A1) | 10 mV/g |
|---|---|
| Weight | 3.7 grams |
| Size (L×W×H) | 40 × 0.32 × 0.70 inches |
| Frequency Response | 0.3 to 5000 Hz |
| Noise Floor | 0.0002 Grms |
The 3305A1 model has a sensitivity of 10 mV per g.
It weighs 3.7 grams.
Prepare a flat surface with .0001" flatness, apply one drop of cyanoacrylate, and attach the accelerometer.
