The document introduces different versions and features of FIT/4 digital load cells. The sensor features 4 limit switches with hysteresis, dosing functionalities and a diagnostic channel, fast triggering and scaling of the measured value, trigger function, integrated overload protection, etc.

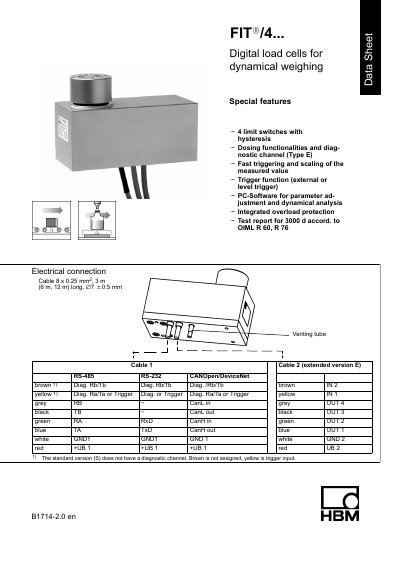

This datasheet describes the FIT/4 series of digital load cells designed for dynamical weighing applications. Key features include four limit switches with hysteresis, dosing functionalities, fast triggering and scaling, and integrated overload protection. The devices support various communication interfaces such as RS-232, RS-485, CANOpen, and DeviceNet, with options for extended versions including diagnostic channels and control inputs/outputs.
| Accuracy class | C3 |
|---|---|
| Max. capacity | 5, 10, 20, 50, 75 kg |
| Power supply voltage | +10... +30 V DC |
| Measuring rate | 4...1200 Hz |
| Degree of protection | IP 66 |
| Housing material | Stainless steel |
| Diaphragm material | Silicone R830 |
The nominal operating temperature range is -10...+40 °C (+14... +104 °F).
Yes, the extended version (E) includes a diagnostic channel and additional control functions.
