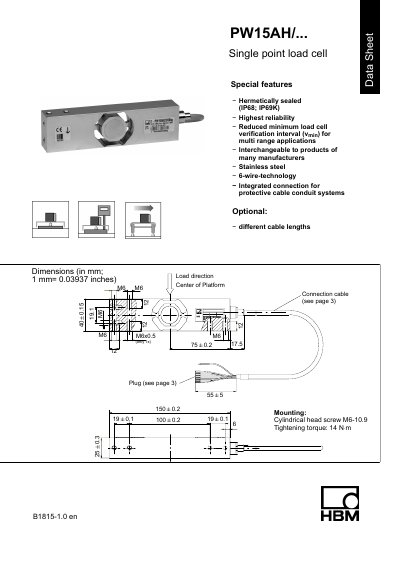

The document describes a special type of single point load cell with features such as hermetically sealed, high reliability, suitable for multi-range applications, interchangeable with other products, made of stainless steel, and using 6-wire technology.
The HBM PW15AH is a single point load cell designed for high reliability and interchangeability with products from many manufacturers. It features a hermetically sealed stainless steel body with IP68 and IP69K protection ratings, making it suitable for demanding environments including steam jet cleaning. The device utilizes 6-wire technology to minimize errors and offers a reduced minimum load cell verification interval for multi-range applications.
The load cell is available in various capacities ranging from 10 kg to 100 kg and supports optional cable lengths of 3 meters or 6 meters. It includes an integrated connection for protective cable conduit systems and is constructed with a silicone rubber coating and PVC cable sheath. The document provides detailed specifications regarding accuracy, temperature effects, electrical parameters, and ordering codes.
| Accuracy class | C3MR |
|---|---|
| Maximum capacity | 10 kg to 100 kg |
| Protection class | IP68; IP69K |
| Material | Stainless steel |
| Technology | 6-wire |
| Temperature range (service) | -10 ... +50 °C |
| Nominal excitation voltage range | 1...12 V |
| Maximum platform size | 500 x 400 mm |
Optional cable lengths of 3 meters and 6 meters are available.
Yes, the PW15AH is interchangeable to products of many manufacturers.
