This document describes the features and characteristics of the T20WN torque transducer, including the rated torque range and accuracy.

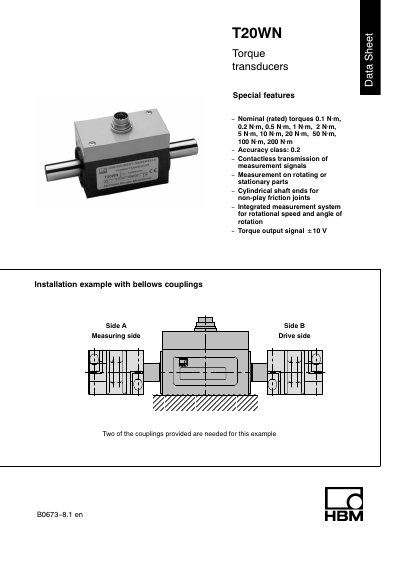

This document is a datasheet for the HBM T20WN torque transducer series. It details special features such as contactless signal transmission and the ability to measure on rotating or stationary parts. The transducers are designed for cylindrical shaft ends and include an integrated system for measuring rotational speed and angle of rotation.
| Accuracy class | 0.2 |
|---|---|
| Output signal at positive nominal torque | +10 V |
| Degree of protection | IP40 |
| Operating temperature range | 0 to +60 °C |
Yes, the transducer supports measurement on rotating or stationary parts.
The nominal output signal is +10 V at positive nominal torque and -10 V at negative nominal torque.
No, the couplings and the torque transducer are delivered as separate items.
