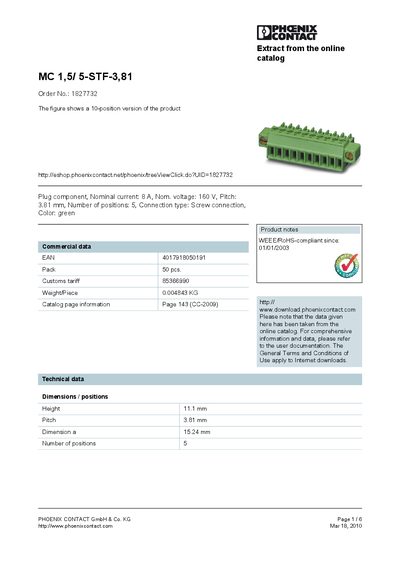

This is the PDF document summary of PHOENIX CONTACT MC 1,5/ 5-STF-3,81. The connector has a rated current of 8A, rated voltage of 160V, pitch of 3.81mm, connection type of screw connection and color of green.
The MC 1,5/5-STF-3,81 is a green, 5‑position plug component with a 3.81 mm pitch and screw‑type connection. It is rated for a nominal current of 8 A and a nominal voltage of 160 V, making it suitable for a variety of wiring applications.
The leaflet also lists dimensions (height 11.1 mm, overall length 15.24 mm), weight (0.004843 kg per piece), tightening torque values (0.22 Nm min, 0.25 Nm max), and certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI). Additional accessories, related product variants, and contact information for Phoenix Contact are provided.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Color | green |
| Tightening torque (min) | 0.22 Nm |
The terminal block is rated for a nominal current of 8 A.
The pitch is 3.81 mm.
It has 5 positions.
The recommended tightening torque is between 0.22 Nm (minimum) and 0.25 Nm (maximum).
