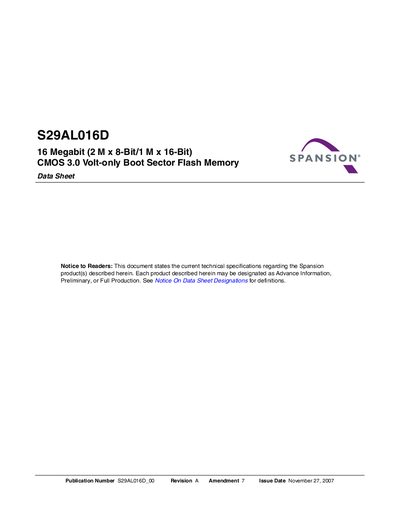

This document describes the technical specifications of the S29AL016D product, which is a 16 Megabit CMOS 3.0 Volt-only Boot Sector Flash Memory. The product can be designated as Advance Information, Preliminary, or Full Production.
The S29AL016D is a 16‑Megabit CMOS flash memory that operates from a single 3.0 V supply (2.7‑3.6 V range) and is offered in 48‑ball FBGA, 48‑pin TSOP and 44‑pin SOP packages. It is fully JEDEC‑compatible and provides fast access times for microprocessor‑based systems.
Key features include 70 ns access time, ultra‑low power consumption (200 nA sleep and standby currents), sector‑level protection, CFI compliance, and robust erase/program algorithms. The device supports up to 1 million program/erase cycles per sector and retains data for 20 years over a –40 °C to +125 °C temperature range.
| Memory Capacity | 16 Mbit (2 M × 8‑bit / 1 M × 16‑bit) |
|---|---|
| Operating Voltage | 2.7 V to 3.6 V |
| Access Time | 70 ns (typical) |
| Sleep Mode Current | 200 nA |
| Standby Mode Current | 200 nA |
| Read Current | 9 mA |
| Program/Erase Current | 20 mA |
| Endurance | 1,000,000 cycles per sector (typical) |
| Data Retention | 20 years (typical) |
| Operating Temperature Range | -40 °C to +125 °C |
| Package Options | 48‑ball FBGA, 48‑pin TSOP, 44‑pin SOP |
The device works from 2.7 V up to 3.6 V for both read and write operations.
Each sector can endure about 1 million program/erase cycles typical.
The memory retains data for 20 years under normal conditions.
Sleep mode current is 200 nA, standby current is 200 nA, read current is 9 mA, and program/erase current is 20 mA.
