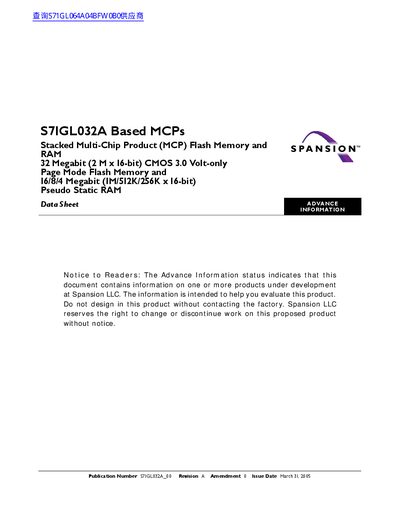

SPANSION S71GL032A Based MCPs Stacked Multi-Chip Product (MCP) Flash Memory RAM 32 Megabit (2 M x 16-bit) CMOS 3.0 Volt-only Page Mode Flash Memory 16/8/4 Megabit (1M/512K/256K x 16-bit) Pseu

This document describes the features of the S71GL032A MCP model, including the capacity and operating voltage of the flash memory and RAM.

Brand: Spansion
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 103
File format: PDF
File size: 1006 KB
Published: 01 June, 2012
Updated: 28 September, 2023
Model: S71GL032A
MD5 checksum: 068F09DCA0B9BE305F3287F364F0BC16
PDF: SPANSION S71GL032A Based MCPs Stacked Multi-Chip Product (MCP) Flash Memory RAM 32 Megabit (2 M x 16-bit) CMOS 3.0 Volt-only Page Mode Flash Memory 16/8/4 Megabit (1M/512K/256K x 16-bit) Pseu PDF

About this manual

The S71GL032A is a stacked multi‑chip product (MCP) that combines a 32 Mb Flash memory die with pSRAM/SRAM. It is offered in 56‑ball FBGA packages and operates from 2.7 V to 3.1 V.

The datasheet provides detailed electrical characteristics, timing diagrams, pin descriptions, and mechanical dimensions, along with revision and ordering information for designers evaluating the device.

What's inside

General Description
Product Selector Guide
Connection Diagram
Pin Description
Ordering Information
Physical Dimensions
Device Bus Operations
Maximum Ratings
DC Characteristics
Revision Summary

Specifications

Power supply voltage	2.7 V to 3.1 V
Package	7 × 9 × 1.2 mm 56‑ball FBGA
Operating temperature (Flash)	-25 °C to +85 °C
Flash memory density	32 Mb (2 M × 16‑bit)

Frequently asked questions

What is the power supply voltage range for the S71GL032A?

The device operates from 2.7 V to 3.1 V.

What package type does the S71GL032A use?

It is supplied in a 56‑ball Fine‑Pitch Ball Grid Array (FBGA) measuring 7 × 9 × 1.2 mm.

What is the flash memory density of the S71GL032A?

The device provides 32 Mb of flash memory (2 M × 16‑bit).
