Start here

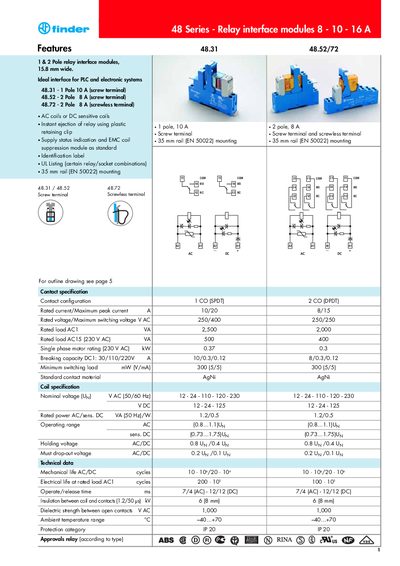

Finder 48 Series Relay Interface Modules Manual
The Finder 48 Series includes 1‑pole and 2‑pole relay interface modules designed for PLC and electronic systems. Modules are 15.8 mm wide and mount on a 35 mm rail (EN 50022) with options for screw or screwless terminals.
The manual lists electrical ratings (8 A, 10 A, 16 A), coil voltage options (12‑24‑110‑120‑230 V AC, 12‑24‑125 V DC), mechanical and electrical life, protection class IP20, and environmental limits. Ordering information, accessory parts, and packaging codes are also provided.
Finder 48 Series specifications
| Rated current / Maximum peak current | 10 A / 20 A (1‑pole), 8 A / 15 A (2‑pole), 16 A / 30 A (1‑pole 16 A) |
|---|---|
| Rated voltage / Maximum switching voltage | 250 V AC / 400 V AC (1‑pole), 250 V AC / 250 V AC (2‑pole) |
| Protection category | IP20 |
| Mechanical life (AC/DC cycles) | 10 million cycles |
| Electrical life at rated load (AC1 cycles) | 200 million cycles |
| Mounting type | 35 mm rail (EN 50022) |
| UL listing | UL Listed |
Source: Finder 48 Series Relay Interface Modules 8‑10‑16A Datasheet
All Finder 48 Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What mounting option is used for the Finder 48 Series relay modules?
All modules are designed for 35 mm rail (EN 50022) mounting.
From: Finder 48 Series Relay Interface Modules 8‑10‑16A Datasheet
Are the Finder 48 Series relay modules UL listed?
Yes, the modules are UL listed.
From: Finder 48 Series Relay Interface Modules 8‑10‑16A Datasheet
What mounting method is supported by the 48 Series relay modules?
All modules mount on a 35 mm rail (EN 50022) and are available with screw or screwless terminals.
What is the protection rating of the modules?
The modules have an IP20 protection category.
