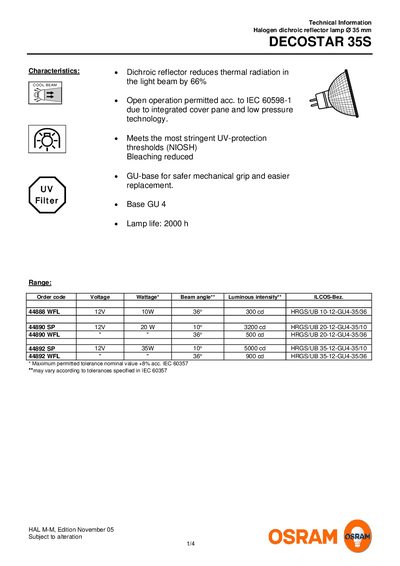

This document describes the features and characteristics of the Halogen dichroic reflector lamp ∅ 35 mm DECOSTAR 35S, including COOL BEAM, reduction of thermal radiation, UV filter, and safer mechanical grip.
The DECOSTAR 35S is a 35 mm halogen dichroic reflector lamp designed for low‑pressure operation with an integrated cover pane. It features a "cool beam" that reduces thermal radiation by 66 %, meets stringent UV‑protection thresholds, and uses a GU4 base for easy replacement. The lamp is rated for a life of 2000 h.
The sheet provides detailed electrical data (12 V, 10‑35 W options), beam angles (10° spot, 36° wide), luminous intensities (300 cd to 5000 cd), and precise mechanical dimensions. Temperature limits are defined by IEC standards (max 90 °C), and outdoor use requires special approved fixtures. Safety and environmental notes are also included.
| Lamp life | 2000 h |
|---|---|
| Base type | GU4 |
| Operating voltage | 12 V |
The lamp is rated for a life of 2000 hours.
It uses a GU4 base.
For outdoor applications and damp locations, special approved fixtures are required.
