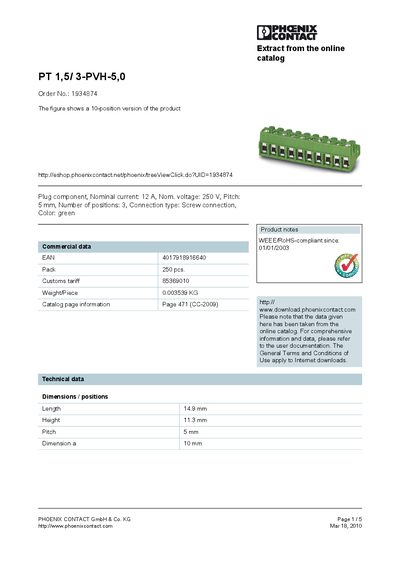

This document describes the features and characteristics of the product PT 1,5/ 3-PVH-5,0 from PHOENIX CONTACT GmbH & Co. KG, including plug component, nominal current and voltage, and connection type.
The PT 1,5/3-PVH-5,0 is a 3‑position terminal block with a 5 mm pitch, designed for screw‑type connections. It is rated for a nominal current of 12 A and a nominal voltage of 250 V, and is supplied in a green (or black) housing.
The sheet includes technical data such as length (14.9 mm), height (11.3 mm), weight (0.003539 kg), and ordering details (Order No. 1934874, EAN 4017918916640). Compliance information (WEEE/RoHS) and certification marks (CUL, UL) are also listed, along with contact details for Phoenix Contact.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Length | 14.9 mm |
| Height | 11.3 mm |
| Weight per piece | 0.003539 kg |
| Color | green |
The terminal block is rated for a nominal current of 12 A.
The pitch of the terminal block is 5 mm.
It has three positions.
The block is 14.9 mm long, 11.3 mm high, with a 5 mm pitch.
