The 74HC1G/HCT1G126 is a highspeed Si-gate CMOS device. The 74HC1G/HCT1G126 provides one non-inverting buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input pin (OE). A LOW at pin OE causes the output as assume a high-impedance OFF-state. The bus driver output currents are equal compared to the 74HC/HCT126.

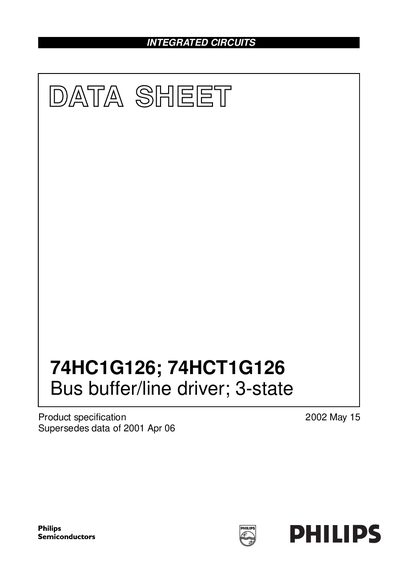

The Philips 74HC1G126 and 74HCT1G126 are high‑speed Si‑gate CMOS bus buffer/line driver devices with a 3‑state output. They operate over a wide voltage range and provide low power dissipation, symmetrical output impedance, and balanced propagation delays.
The document provides detailed electrical characteristics, recommended operating conditions, package options, and ordering information, along with AC and DC performance data and waveform diagrams.
| Operating voltage range | 2.0 V to 6.0 V |
|---|---|
| Package options | SOT353 (5‑pin) and SOT753 (5‑pin) plastic packages |
It operates from 2.0 V up to 6.0 V.
Both devices are offered in 5‑pin plastic SOT353 and SOT753 packages.
