The document describes the features and characteristics of the product FMCD 1,5/ 5-ST-3,5 from PHOENIX CONTACT GmbH & Co. KG. The product is a plug component with a nominal current of 8A and nominal voltage of 160V. It has a pitch of 3.5mm and 5 positions, with a spring-cage connection type and green color. The product is WEEE/RoHS-compliant. Technical data includes dimensions, number of positions, insulating material group, rated surge voltage, nominal current, and nominal voltage.
The FMCD 1,5/5-ST-3,5 is a 5‑position plug component with a spring‑cage connection type. It is designed for a nominal current of 8 A and a nominal voltage of 160 V, and it is supplied in a green colour.

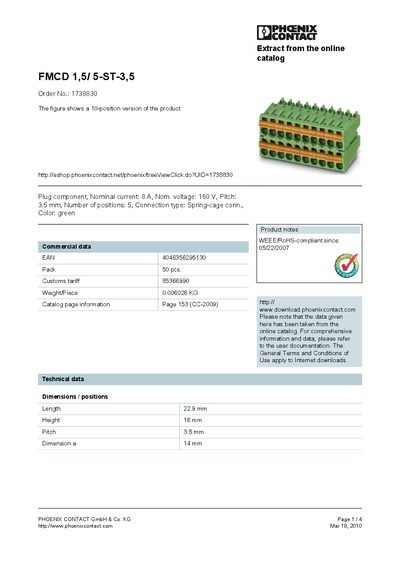

The datasheet lists the physical dimensions (22.9 mm × 16 mm, pitch 3.5 mm, dimension a 14 mm), weight, EAN code, and compliance information. Technical ratings such as surge voltage (2.5 kV) and rated voltages (160 V / 320 V) are also included, along with contact details for Phoenix Contact.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Connection type | Spring‑cage |
| Color | Green |
| Length | 22.9 mm |
| Height | 16 mm |
| Weight per piece | 0.006026 kg |
| RoHS compliance date | 05/22/2007 |
The nominal current is 8 A.
It has 5 positions.
The plug is 22.9 mm long, 16 mm high, with a 3.5 mm pitch and a dimension a of 14 mm.
Yes, it has been RoHS compliant since 05/22/2007.
