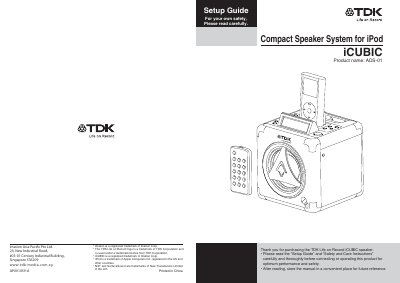

This is a user manual for the iCUBIC speaker.
This manual covers the safe installation and use of the TDK iCUBIC ADS-01 compact speaker system. It includes safety and care instructions, detailed operating procedures for iPod, AUX, and FM radio functions, and guidance on setting alarms, sleep timers, and equalizer presets.
Additional sections describe the contents of the package, part identification, battery handling, troubleshooting tips, and the main technical specifications such as power requirements, dimensions, and FM frequency range.
| Power supply | AC/DC adaptor input 230V‑50Hz output DC 12V 1.0A |
|---|---|
| Output power | 5W |
| Dimensions | 135 x 143.7 x 135 mm (W×H×D) |
| Weight | 1.25 kg |
| FM frequency range | 87.5 – 108 MHz |
Press the “Alarm 1” button once on the remote control, then use the skip/search buttons to set hour and minute, and press the button again to confirm.
Yes, the iPod player can be charged automatically when it is docked in the unit, either in standby or power‑on mode.
It uses a 230 V‑50 Hz AC input with a DC 12 V 1.0 A output from the supplied adaptor.
Use the volume up or volume down button on the main unit or remote control to increase or decrease the sound level.
