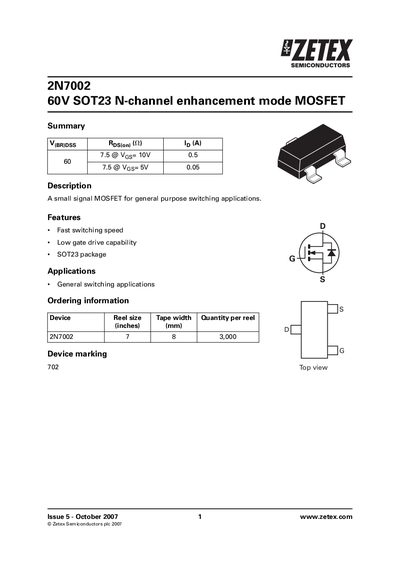

2N7002 is a small signal MOSFET produced by Zetex Semiconductors. It has a fast switching speed, low gate drive capability and SOT23 package, and is suitable for general switching applications.
The 2N7002 is a small‑signal N‑channel enhancement mode MOSFET intended for general‑purpose switching applications. It features fast switching speed, low gate drive capability, and comes in a compact SOT‑23 package.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, mechanical dimensions, and ordering information. It also includes product status, compliance notes, and contact details for Zetex sales offices worldwide.
| Drain‑source voltage (VDS) | 60 V |
|---|---|
| Continuous drain current (ID) | 115 mA |
| Pulsed drain current (ID,pulse) | 800 mA |
| Gate‑source voltage (VGS) | ±40 V |
| Power dissipation (PD) | 330 mW |
| Operating temperature range | -55 °C to +150 °C |
| On‑state resistance (RDS(on)) | 7.5 Ω |
| Input capacitance (Ciss) | 50 pF |
| Package type | SOT‑23 |
| Devices per reel | 3,000 |
The 2N7002 can withstand up to 60 V between drain and source.
It is rated for operation from –55 °C to +150 °C.
A standard reel contains 3,000 devices.
Yes, all Zetex components, including the 2N7002, comply with the RoHS directive.
