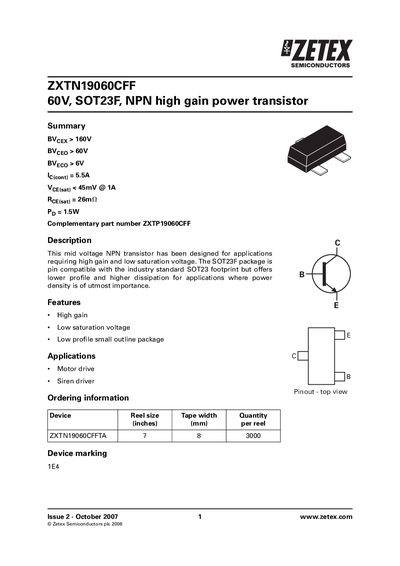

ZXTN19060CFF is a 60V, SOT23F, NPN high gain power transistor. It features high gain and low saturation voltage and is suitable for applications requiring high gain and low saturation voltage.
The ZXTN19060CFF is a mid‑voltage NPN power transistor designed for high gain and low saturation voltage applications. It is offered in a low‑profile SOT23F package that is pin‑compatible with the standard SOT23 footprint.
The document lists absolute maximum ratings, electrical characteristics, typical performance curves, and mechanical dimensions, enabling designers to assess suitability for motor drives, siren drivers, and other power‑switching circuits.
| Collector‑emitter voltage (VcEO) | 60 V |
|---|---|
| Transition frequency (fT) | 130 MHz |
| Input capacitance (Cibo) | 310 pF |
| Package dimensions (A) | 0.80 mm × 1.00 mm |
The device is supplied in an SOT23F small‑outline package.
