ZXTP25040DFL is a 40V SOT23 package PNP low power transistor. It features high peak current, low saturation voltage, 40V forward blocking voltage. This device is ideal for applications requiring high pulse currents, such as MOSFET and IGBT gate driving and low power DC-DC conversion.
The ZXTP25040DFL is a 40 V, SOT‑23 packaged PNP low‑power transistor designed for high peak current applications such as MOSFET/IGBT gate driving and low‑power DC‑DC conversion. It features a high peak current capability, low saturation voltage, and a 40 V forward blocking voltage.

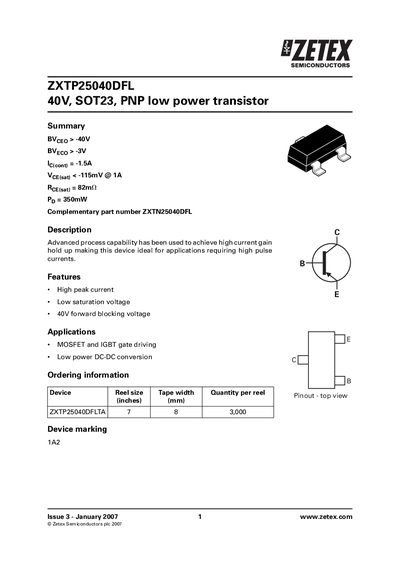

The datasheet lists absolute maximum ratings, electrical characteristics, and typical performance curves, along with ordering information, device marking, and mechanical dimensions. It also includes legal and compliance notes from Zetex Semiconductors.
| Collector‑base breakdown voltage (BVcbo) | -45 V |
|---|---|
| Collector‑emitter breakdown voltage (VCEO) | -40 V |
| Emitter‑collector breakdown voltage (VECO) | -3 V |
| Peak pulse current | 5 A |
| Power dissipation at 25 °C | 350 mW |
| Transition frequency (fT) | 270 MHz |
| Lead A length (min) | 2.67 mm |
The maximum collector‑emitter voltage is -40 V.
The device can dissipate up to 350 mW at a case temperature of 25 °C.
