The M68HC12B Family Data Sheet provides the latest information about the M68HC12 microcontroller. It describes the features and characteristics of the products in this series.

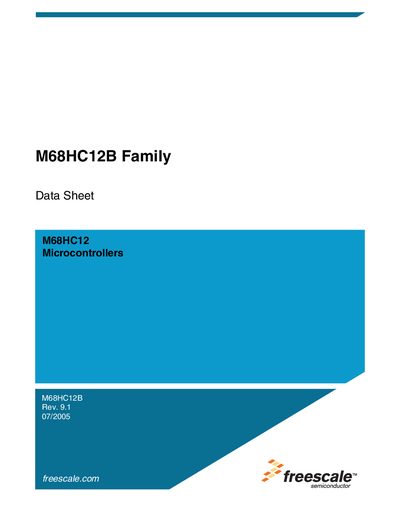

The M68HC12B Family Data Sheet (Rev. 9.1, 07/2005) from Freescale Semiconductor offers a complete technical reference for the 8‑bit HC12 microcontroller family. It includes general descriptions, register definitions, CPU architecture, memory maps, and detailed pin‑out information.
The document also covers electrical and mechanical specifications, operating modes, peripheral modules such as PWM, timers, ADC, serial interfaces, and development support. Revision history and contact information for Freescale technical support are provided at the end of the sheet.
| Release Date | 07/2005 |
|---|---|
| Technology | SuperFlash® |
| RoHS Compliance | Yes |
The latest revision is available on Freescale’s website; refer to the URL provided in the document.
The M68HC12B incorporates SuperFlash® technology.
