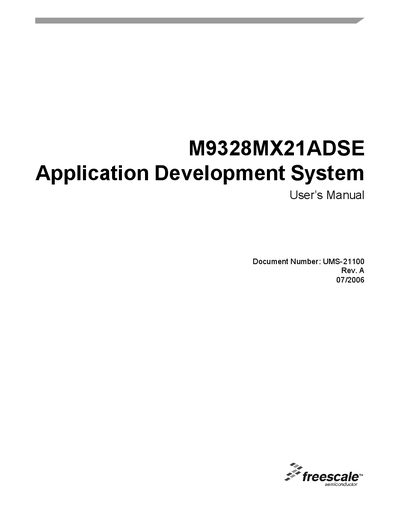

This document is the user manual for the M9328MX21ADSE Application Development System, describing the system's description, features, and system and user requirements.
This manual explains how to connect and operate the M9328MX21ADSE i.MX21 Application Development System. It is intended for handheld communication device designers, engineers, and technicians who use development systems.
The document covers general information, configuration and operation of board components, connector pin assignments, and support information such as power requirements and interface specifications. Key sections include General Information, Configuration and Operation, and Support Information.
| Processor | i.MX21 Multimedia Application Processor |
|---|---|
| Clock Sources | 32.768 kHz and 26 MHz crystals |
| Power Input | +5.0 VDC (max +5.5 V) |
| Voltage Regulators | 3.0 V, 2.5 V, 1.8 V, 1.5 V outputs |
| Flash Memory | 32 MB (two 8 MB x 16‑bit Burst Flash devices) |
| SDRAM | 64 MB (two 16 MB x 16‑bit SDRAM devices) |
| Connectors | 19 connectors and sockets |
The board works with Windows 98, Windows ME, Windows XP, Windows 2000, or Windows NT 4.0.
Do not supply more than +5.5 V to the M9328MX21ADSE.
The system includes 19 connectors and sockets for peripherals and expansion cards.
