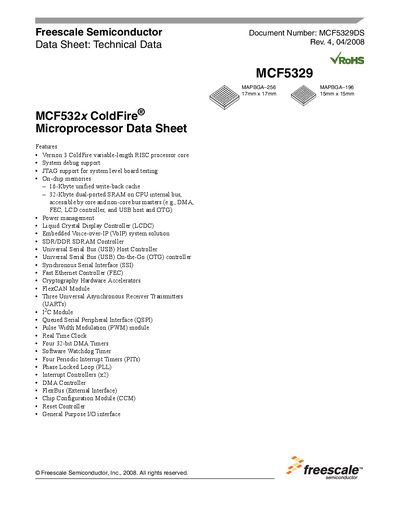

This data sheet introduces the features and characteristics of the Freescale Semiconductor MCF5329 microprocessor
The MCF5329 is a ColdFire® version 3 RISC microprocessor featuring a 240 MHz core clock, 80 MHz bus clock, on‑chip memories, and a range of integrated peripherals such as USB, Ethernet, CAN, and cryptography accelerators. It is offered in two MAPBGA packages with detailed pin‑muxing and electrical characteristics.
The document provides family comparison tables, ordering information, hardware design guidelines, pin assignments, electrical specifications, and package dimensions, along with revision history and contact details for Freescale support.
| Core Clock | up to 240 MHz |
|---|---|
| Bus Clock | up to 80 MHz |
| Unified Cache | 16 Kbyte |
| On‑chip SRAM | 32 Kbyte |
| Package (256) | MAPBGA‑256 17 mm × 17 mm |
| Package (196) | MAPBGA‑196 15 mm × 15 mm |
| Operating Temperature | -40 °C to +85 °C |
The core clock can run up to 240 MHz.
It is offered in MAPBGA‑256 (17 mm × 17 mm) and MAPBGA‑196 (15 mm × 15 mm) packages.
The device includes a 16‑Kbyte unified write‑back cache.
