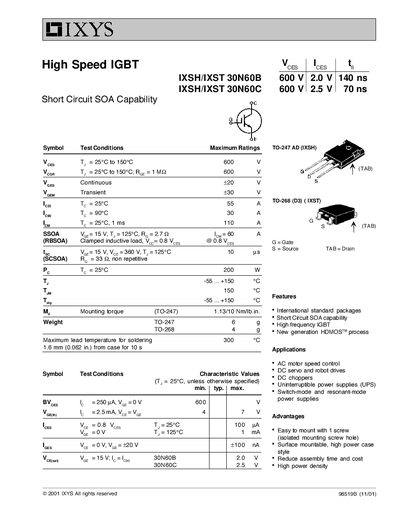

This data sheet mainly introduces the parameters and characteristics of 30N60B/C IGBT, including maximum rated voltage, maximum rated current, switching characteristics, thermal characteristics, size and weight.
The IXSH/IXST 30N60B is a high‑speed IGBT offered in TO‑247 and TO‑268 packages. It features short‑circuit SOA capability, high frequency operation, and is fabricated with IXYS's new generation HDMOS™ process. Typical applications include AC motor speed control, DC servo and robot drives, DC choppers, UPS, and switch‑mode power supplies.
Key electrical ratings include a 600 V collector‑emitter voltage, 55 A continuous collector current at 25 °C, 110 A pulsed current (1 ms), and a maximum power dissipation of 200 W at 25 °C. The device operates from –55 °C to +150 °C, with a mounting torque of 1.18 Nm for the TO‑247 package and a maximum lead temperature of 300 °C for soldering.
| Mounting Torque (TO‑247) | 1.18 Nm |
|---|---|
| Package Weight (TO‑247) | 6 g |
| Maximum Lead Temperature for Soldering | 300 °C |
Typical applications include AC motor speed control, DC servo and robot drives, DC choppers, uninterruptible power supplies, and switch‑mode or resonant‑mode power supplies.
