The MC14015B is a dual 4-bit static shift register constructed with MOS P-Channel and N-Channel enhancement mode devices in a single monolithic structure. It consists of two identical, independent 4-state serial-input/parallel-output registers. Each register has independent Clock and Reset inputs with a single serial Data input. The register states are type D master-slave flip-flops. Data is shifted from one stage to the next during the positive-going clock transition. Each register can be cleared when a high level is applied on the Reset line. These complementary MOS shift registers find primary use in buffer storage and serial-to-parallel conversion where low power dissipation and/or noise immunity is desired.
The MC14015B is a dual 4‑bit static shift register built with MOS P‑channel and N‑channel enhancement mode devices. Each register has independent clock, reset and serial data inputs, and provides parallel outputs. It is intended for buffer storage and serial‑to‑parallel conversion where low power dissipation and noise immunity are required.

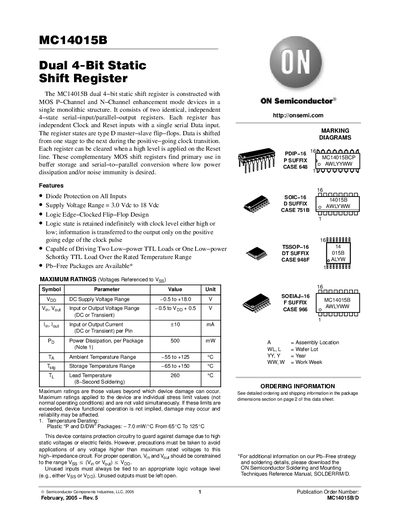

The datasheet provides detailed specifications such as supply voltage range, maximum ratings, electrical and switching characteristics, pin assignments, package dimensions for multiple package types (PDIP‑16, SOIC‑16, TSSOP‑16, etc.), and ordering information.
