BCP53T1 is a PNP silicon epitaxial transistor designed for use in audio amplifier applications by Semiconductor Components Industries, LLC. The device is housed in the SOT-223 package which is designed for medium power surface mount applications.
The BCP53 series PNP silicon epitaxial transistors are designed for audio‑amplifier applications and are housed in an SOT‑223 surface‑mount package suitable for medium‑power use. The device offers a high current capability of 1.5 A and is available in Pb‑Free versions.

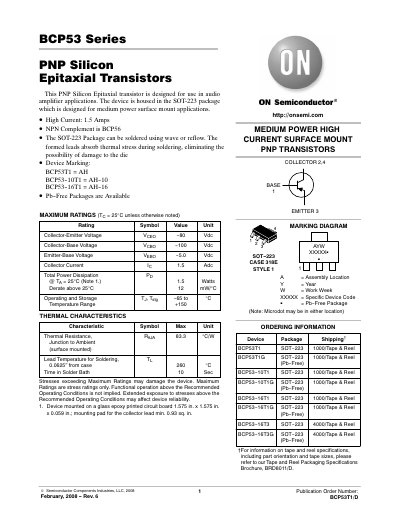

The datasheet lists maximum voltage ratings, thermal resistance, operating temperature range, and detailed ordering information, including tape‑and‑reel packaging options. Typical electrical characteristics such as collector‑emitter breakdown voltage and current gain are also provided.
| Collector‑Emitter Voltage (VCEO) | -80 Vdc |
|---|---|
| Collector Current (IC) | 1.5 A |
| Thermal Resistance, Junction‑to‑Ambient (RθJA) | 83.3 °C/W |
| Package | SOT‑223 |
| Pb‑Free Package Availability | Yes |
The maximum collector‑emitter voltage is –80 Vdc.
The transistors are housed in an SOT‑223 surface‑mount package.
Yes, Pb‑Free packages are available for the BCP53 series.
