The MC14016B/D is a quad analog switch/quad multiplexer produced by the American semiconductor company. It is constructed with MOS P-channel and N-channel enhancement mode devices, and has the characteristics of low noise, high reliability and high durability.

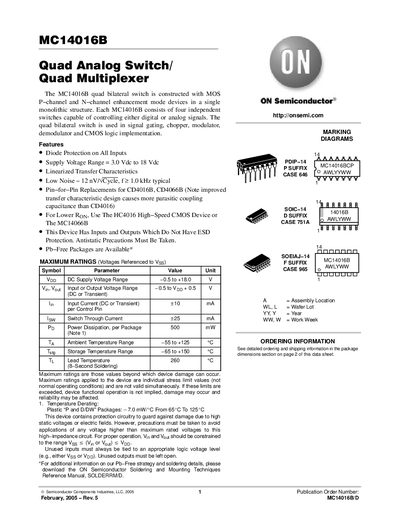

This datasheet describes the MC14016B quad bilateral analog switch, including its MOS P‑channel and N‑channel devices, typical applications such as signal gating and modulation, and key features like diode protection and low noise. It also lists ordering information for multiple package options.
Detailed sections cover pin assignments, electrical characteristics (voltage ranges, on‑resistance, propagation delay, leakage currents), maximum ratings, package dimensions for PDIP‑14, SOIC‑14 and SOEIAJ‑14, and application notes on using external diodes for protection.
| Supply Voltage Range | 3.0 Vdc to 18 Vdc |
|---|---|
| Maximum Power Dissipation (per package) | 500 mW |
| On‑Resistance (Ron) typical | 45.6 Ω |
The device operates from 3.0 Vdc up to 18 Vdc.
The maximum power dissipation is 500 mW per package.
Typical on‑resistance is about 45.6 Ω.
