ON Semiconductor MC34163 and MC33163 Datasheet

The MC34163 series are monolithic power switching regulators that contain the primary functions required for dc-to-dc converters. This series is specifically designed to be incorporated in step-up, step-down, and voltage-inverting applications with a minimum number of external components. These devices consist of two high gain voltage feedback comparators, temperature compensated reference, controlled duty cycle oscillator, driver with bootstrap capability for increased efficiency, and a high current output switch. Protective features consist of cycle-by-cycle current limiting, and internal thermal shutdown. Also included is a low voltage indicator output designed to interface with microprocessor based systems. These devices are contained in a 16 pin dual-in-line heat tab plastic package for improved thermal conduction. Output Switch Current in Excess of 3.0 A, Operation from 2.5 V to 40 V Input, Low Standby Current, Precision 2% Reference, Controlled Duty Cycle Oscillator, Driver with Bootstrap Capability for Increased Efficiency, Cycle-by-Cycle Current Limiting, Internal Thermal Shutdown Protection, Low Voltage Indicator Output for Direct Microprocessor Interface, Heat Tab Power Package, Moisture Sensitivity Level (MSL) Equals 1.

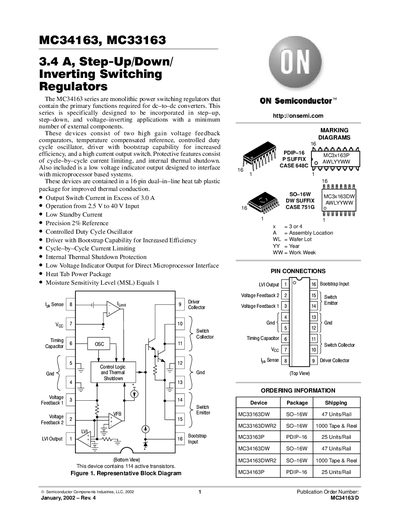

ON Semiconductor MC34163 and MC33163 Datasheet - cover page
Brand
ON Semiconductor
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
16
File format
PDF
File size
251 KB
Published
11 April, 2012
Updated
29 September, 2023
MD5 checksum
77C814B2C5919A39E6A423A6D75E47C4

About this manual

The MC34163 series are monolithic power switching regulators designed for step‑up, step‑down, and voltage‑inverting dc‑to‑dc converter applications. They integrate high‑gain voltage feedback comparators, a temperature‑compensated reference, a controlled‑duty‑cycle oscillator, a driver with bootstrap capability, and a high‑current output switch, along with protective features such as cycle‑by‑cycle current limiting and internal thermal shutdown.

The document includes detailed electrical characteristics, maximum ratings, pin connections, comparator operation, package dimensions, and ordering information for both the MC34163 and MC33163 devices. It also outlines typical operating waveforms and provides guidance for implementing the regulators in consumer, automotive, computer, and industrial products.

What's inside

  • Introduction
  • Operating Description
  • Electrical Characteristics
  • Maximum Ratings
  • Pin Connections
  • Comparator Output
  • Package Dimensions
  • Ordering Information

Specifications

Input voltage range2.5 V to 40 V
Output switch current ratingExceeds 3.0 A
Switch collector voltage (Voc)40 V
Low voltage indicator sink current10 mA
Thermal resistance, junction‑to‑air80 °C/W (DIP‑16) / 94 °C/W (SO‑16W)
Package typesPDIP‑16, SO‑16W (tape & reel)
