This is a high-performance multi-purpose flash with 3.0-3.6V single voltage read and write operations, 100,000 cycles of durability and over 100 years of storage life.

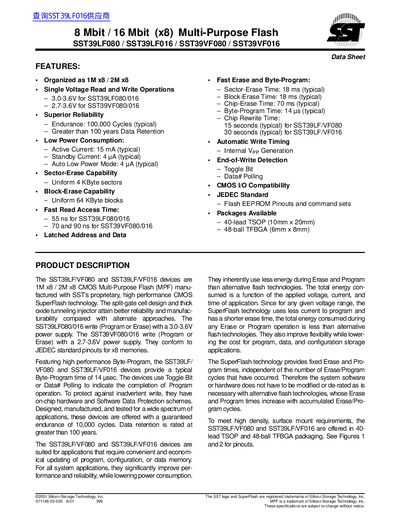

This document is a datasheet for the SST39LF080, SST39LF016, SST39VF080, and SST39VF016 devices. These are 1M x8 / 2M x8 CMOS Multi-Purpose Flash (MPF) manufactured with Silicon Storage Technology's proprietary SuperFlash technology.
The datasheet details device operation including read, byte-program, sector/block-erase, and chip-erase commands. It specifies electrical characteristics such as voltage ranges (3.0-3.6V for LF series, 2.7-3.6V for VF series), endurance of 100,000 cycles, and data retention greater than 100 years.
| Organization | 1M x8 / 2M x8 |
|---|---|
| Endurance | 100,000 Cycles (typical) |
| Data Retention | Greater than 100 years |
| Active Current (LF) | 15 mA (typical) |
| Standby Current | 4 uA (typical) |
| Read Access Time (LF) | 55 ns |
| Sector-Erase Time | 18 ms (typical) |
| Byte-Program Time | 14 us (typical) |
The devices have a typical endurance of 100,000 cycles.
The typical Chip-Erase time is 70 ms.
They are offered in a 40-lead TSOP and a 48-ball TFBGA.
