This product is a high power LED, which features super high luminance and all chips can be individually driven to provide the required color.

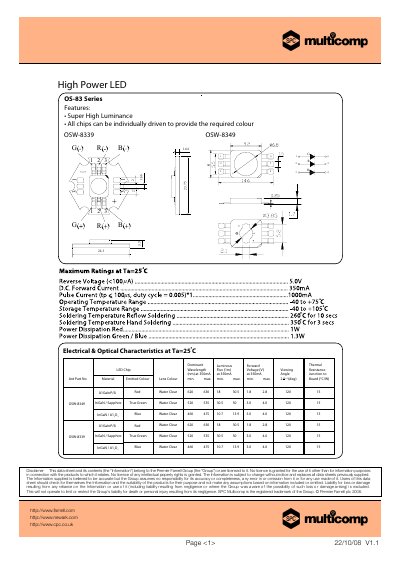

This datasheet describes the Multicomp OS-83 Series high‑power LEDs, available in blue, green, and red chips. It includes key electrical and optical characteristics measured at a junction temperature of 25 °C.
Typical specifications include forward voltage ranges, luminous flux, dominant wavelengths, viewing angle, and thermal resistance. Graphs illustrate wavelength curves, forward voltage versus current, and temperature effects on light output.
| Thermal Resistance (Junction to Board) | 15 °C/W |
|---|---|
| Dominant Wavelength (Red LED) | 620‑630 nm |
The thermal resistance from junction to board is 15 °C/W.
The red LED emits light with dominant wavelengths of 620 nm to 630 nm.
