This data sheet provides specifications of the switch, including polarity, contact resistance, insulation resistance, dielectric strength, operating temperature, materials, etc.

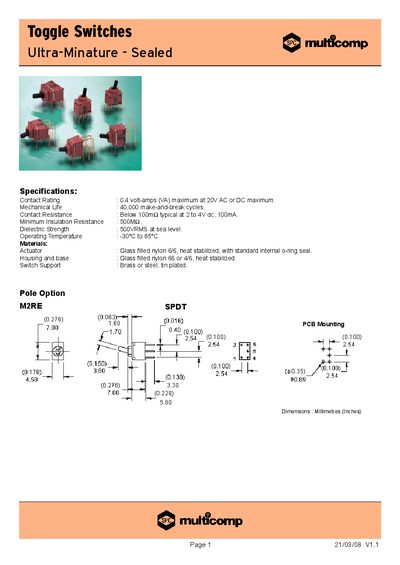

This datasheet provides the electrical and mechanical specifications for Multicomp's Ultra‑Miniature sealed toggle switches. Key parameters such as contact rating, mechanical life, insulation resistance and operating temperature are listed, along with material details for the actuator and housing.
The document also includes pole options, PCB mounting dimensions, soldering guidelines, a temperature profile for reflow processes, a full part‑number table, and international sales office contacts.
| Contact Rating | 0.4 VA maximum at 20 V AC or DC |
|---|---|
| Mechanical Life | 40,000 make‑and‑break cycles |
| Contact Resistance | Below 100 mΩ typical at 2‑4 V, 100 mA |
| Minimum Insulation Resistance | 500 MΩ (as printed) |
| Dielectric Strength | 500 V RMS at sea level |
| Operating Temperature | -30 °C to 85 °C |
| Actuator Material | Glass filled nylon 6/6, heat stabilized, with internal o‑ring seal |
| Housing Material | Glass filled nylon 66 or 4/6, heat stabilized |
The contact rating is 0.4 VA maximum at 20 V AC or DC.
The switches are rated for 40,000 make‑and‑break cycles.
They operate from –30 °C up to 85 °C.
The recommended wave‑soldering temperature is 260 ± 5 °C.
