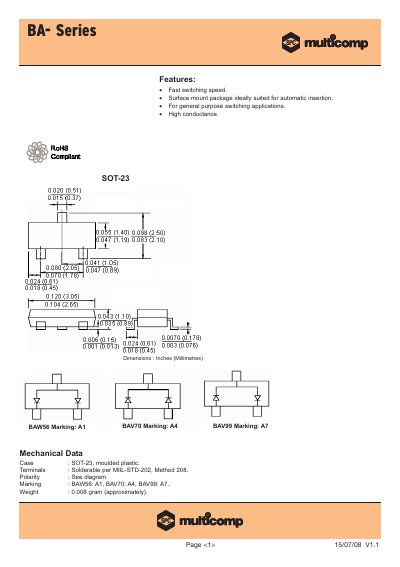

This document is the specification of BAW56/BAV70/BAV99, introducing the features and characteristics of the product, including appearance, size, package, pins, maximum ratings, electrical characteristics, etc.
The BA- Series diodes (BAW56, BAV70, BAV99) are fast‑switching, high‑conductance Schottky devices offered in a SOT‑23 surface‑mount package, suitable for general‑purpose switching applications. Mechanical data include a moulded plastic case, solderable terminals, and a weight of approximately 0.008 g.
Key electrical specifications are listed, such as a 75 V reverse voltage, 200 mA forward current, 225 mW power dissipation, and a thermal resistance of 556 °C/W. The datasheet also provides typical forward voltage curves, leakage currents, capacitance values, and reverse recovery time. Contact information for international sales offices is included for further enquiries.
| Package | SOT-23 |
|---|---|
| Reverse Voltage (VR) | 75 V |
| Forward Current (IF) | 200 mA |
| Power Dissipation (PD) | 225 mW |
| Thermal Resistance (RθJA) | 556 °C/W |
| Junction Temperature (TJ) | 150 °C |
| Storage Temperature Range | -55 to 150 °C |
| Capacitance (Cj) | 1.5 pF |
| Reverse Recovery Time (trr) | 6.0 ns |
| Weight | 0.008 gram |
They are supplied in a surface‑mount SOT‑23 package.
The diodes can withstand up to 75 V reverse voltage.
Contact the international sales offices listed in the datasheet, such as Farnell locations worldwide.
