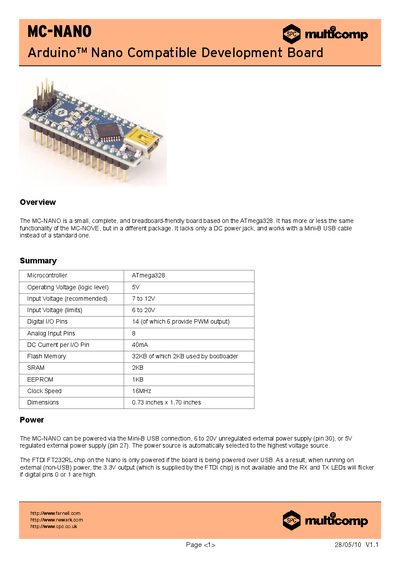

The MC-NANO is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the MC-NOVE, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
The MC‑NANO is a small, breadboard‑friendly development board based on the ATmega328 microcontroller. It provides the same functionality as an Arduino Nano, but in a slimmer package without a DC power jack, and is powered via a Mini‑B USB connector or external supply.
The manual covers board specifications, pin functions, communication interfaces, programming methods, automatic reset via the FT232RL chip, and includes reference design files and part numbers.
| Microcontroller | ATmega328 |
|---|---|
| Operating Voltage (logic level) | 5 V |
| Input Voltage (recommended) | 7 V to 12 V |
| Input Voltage (limits) | 6 V to 20 V |
| Digital I/O Pins | 14 (6 PWM) |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 32 KB (2 KB bootloader) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| Dimensions | 0.73 in × 1.70 in |
It can be powered via the Mini‑B USB connector, a 6‑20 V unregulated external supply (pin 30), or an SV‑regulated external supply (pin 27).
Each I/O pin can provide up to 40 mA.
The board has 14 digital I/O pins (6 of which support PWM) and 8 analog input pins.
