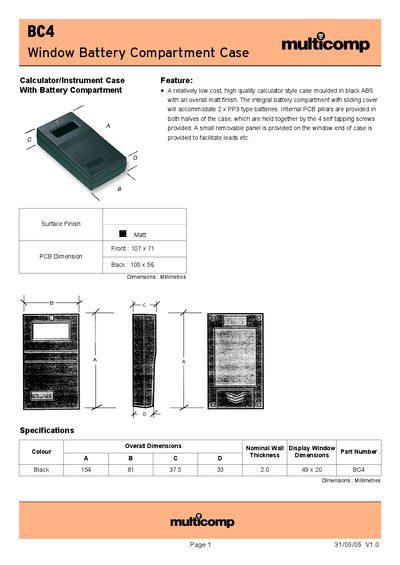

The BC4 Window Battery Compartment Case is a relatively low-cost, high-quality calculator-style case made of black ABS with a matte finish. It features an integral battery compartment with a sliding cover that can accommodate 2 x PP3 type batteries. The case is held together by 4 self-tapping screws and has internal PCB pillars in both halves. A small removable panel is provided on the window end to facilitate leads. The overall dimensions of the case are 154 x 81 x 37.5 millimeters.
The BC4 Window Battery Compartment Case is a low‑cost, high‑quality calculator‑style case molded in black ABS with an overall matt finish. It features an integral battery compartment with a sliding cover that holds two PP3 type batteries, and internal PCB pillars in both halves of the case.
The case dimensions are Front 107 × 71 mm and Back 105 × 56 mm, with overall dimensions around 154 × 81 × 37.5 mm. The two halves are secured by four self‑tapping screws, and a removable panel on the window end facilitates lead access. International sales offices and contact numbers are listed for worldwide enquiries.
| Colour | Black |
|---|---|
| Material | Black ABS |
| Surface finish | Matt |
| Battery type | 2 × PP3 |
| Front dimensions | 107 × 71 mm |
| Back dimensions | 105 × 56 mm |
| Fastening method | 4 self‑tapping screws |
It accommodates two PP3 type batteries.
They are held together by four self‑tapping screws.
International sales offices and telephone/fax numbers are listed under the "International Sales Offices" section.
