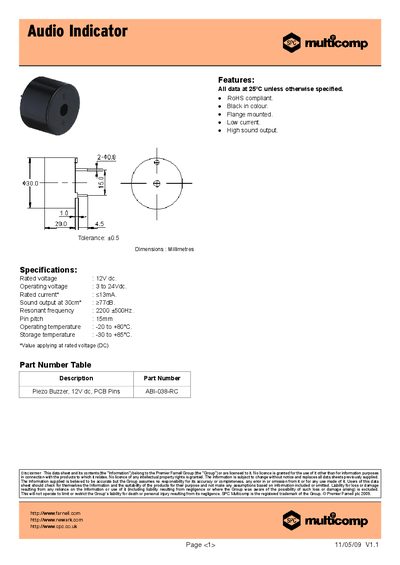

This document describes an audio indicator page, including features and characteristics such as RoHS compliance, black color, flange mounted, low current, high sound output.
The MULTICOMP Audio Indicator is a flange‑mounted piezo buzzer designed for low‑current operation with high sound output. It is RoHS compliant and supplied in black.
The sheet provides electrical ratings, acoustic performance, mechanical dimensions, and environmental limits, along with the part number for ordering. It also includes a disclaimer from Premier Farnell Group.
| Rated voltage | 12 V |
|---|---|
| Operating voltage | 13 V to 24 V |
| Rated current | <13 mA |
| Sound output at 30 cm | 77 dB |
| Resonant frequency | 2200 ± 500 Hz |
| Pin pitch | 15 mm |
| Operating temperature | -20 °C to +80 °C |
| Storage temperature | -30 °C to +85 °C |
The rated voltage is 12 V.
The sound output is 77 dB at 30 cm.
The device operates from –20 °C to +80 °C.
The part number is ABI‑038‑RC.
