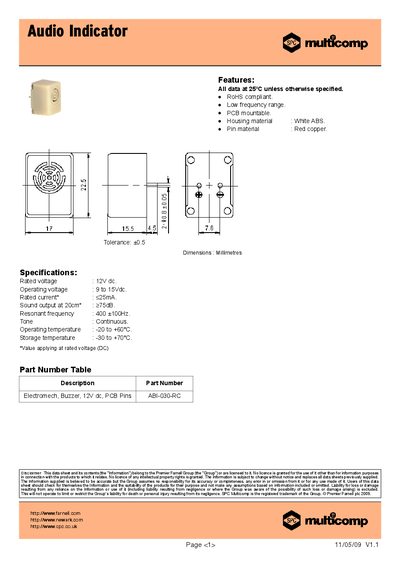

This document introduces an audio indicator product with features such as low frequency range, PCB mountable, white ABS housing, and red copper pins.
The Audio Indicator is a PCB‑mountable buzzer with a white ABS housing and red copper pins. It operates at a rated voltage of 12 V and an operating voltage range of 9 V to 15 V.
Key specifications include a rated current of less than 25 mA, a sound output of 275 dB at 20 cm, a resonant frequency of 400 ± 100 Hz, and continuous tone operation. The device works from –20 °C to +60 °C and can be stored from –30 °C to +70 °C.
| Operating voltage | 9 V to 15 V |
|---|---|
| Resonant frequency | 400 ± 100 Hz |
| Tone | Continuous |
| Operating temperature | -20 °C to +60 °C |
| Storage temperature | -30 °C to +70 °C |
| Housing material | White ABS |
| Pin material | Red copper |
The part number is ABI-030-RC.
It operates from –20 °C to +60 °C.
The housing is made of white ABS.
