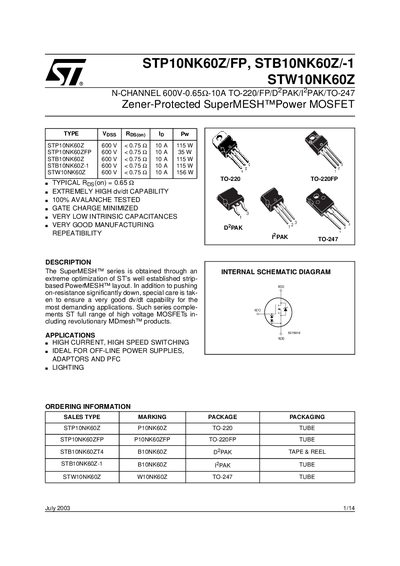

STP10NK60Z/FP, STB10NK60Z/-1 STW10NK60Z N-CHANNEL 600V-0.65Ω-10A TO-220/FP/D2PAK/I2PAK/TO-247 Zener-Protected SuperMESH™Power MOSFET is a high performance MOSFET from ST with very low RDS(on), ideal for high current, high speed switching applications such as offline power supplies, adaptors and PFC.
The SuperMESH™ series MOSFETs (STP10NK60Z, STP10NK60ZFP, STB10NK60Z, STB10NK60Z‑1, STW10NK60Z) are high‑voltage, low‑on‑resistance devices optimized for high‑current, high‑speed switching applications such as offline power supplies, adapters, PFC circuits and lighting. The handbook details their electrical limits, thermal performance and mechanical dimensions.
Key data include a 600 V drain‑source rating, up to 10 A continuous drain current, low typical on‑resistance (0.65 mΩ), built‑in gate‑source Zener protection (30 V) and avalanche capability (9 A). Mechanical drawings for TO‑220, TO‑220FP, TO‑247 and D²PAK packages are provided along with ordering information and shipping specifications.
| Drain‑source Voltage (VDS) | 600 V |
|---|---|
| Typical On‑Resistance (RDS(on)) | 0.65 mΩ |
| Avalanche Current (IA) | 9 A |
The devices are rated for a maximum drain‑source voltage of 600 V.
The typical on‑resistance is 0.65 mΩ.
