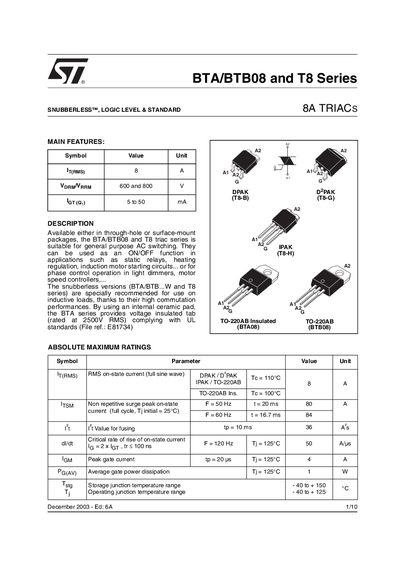

BTA/BTB08 and T8 Series SNUBBERLESS™, LOGIC LEVEL & STANDARD 8A TRIACS, this series of products are suitable for general AC switching, and can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits. or for phase control operation in light dimmers, motor speed controllers. This series of products are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards (File ref.: E81734).
The BTA/BTB08 and T8 Series triacs are snubberless, logic‑level and standard 8 A devices suitable for general‑purpose AC switching, such as static relays, heating regulation, induction motor starters, light dimmers and motor speed controllers. The series is offered in through‑hole and surface‑mount packages and supports 600 V and 800 V voltage ratings.
The document contains electrical characteristics, thermal resistances, product selectors, ordering information, and detailed mechanical dimensions for DPAK, D?PAK, IPAK and TO‑220AB packages, along with typical performance graphs and packaging data.
| Voltage rating | 600 V / 800 V |
|---|---|
| Gate trigger voltage (Vth) | 0.85 V |
| Dynamic resistance | 50 mΩ |
They are available with 600 V or 800 V ratings.
The threshold voltage is up to 0.85 V.
