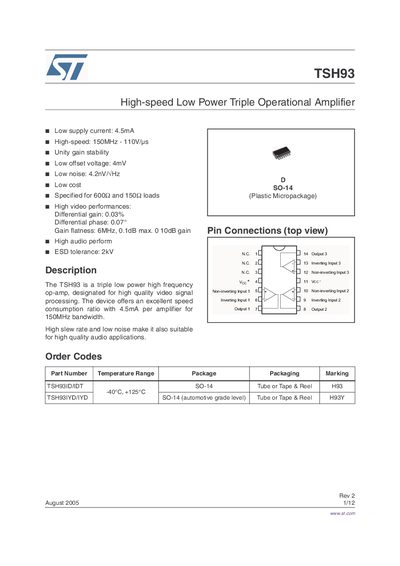

TSH93 is a triple low power high frequency op-amp, designated for high quality video signal processing. The device offers an excellent speed consumption ratio with 4.5mA per amplifier for 150MHz bandwidth. High slew rate and low noise make it also suitable for high quality audio applications.
The TSH93 is a triple low‑power, high‑frequency operational amplifier designed for high‑quality video and audio signal processing. It offers a 150 MHz bandwidth, low offset voltage (4 mV), low noise (4.2 nV/√Hz), and a supply current of 4.5 mA per amplifier.
The document includes absolute maximum ratings, detailed electrical characteristics, recommended printed‑circuit‑board layout rules, mechanical data for the SO‑14 ECOPACK package, order codes, and a revision history.
| Supply Current (per amplifier, no load) | 4.5 mA typ. |
|---|---|
| Low Noise | 4.2 nV/√Hz |
The supply current is 4.5 mA per amplifier with no load.
Each power‑supply lead should be bypassed with a 10 nF ceramic capacitor close to the device and a 101 µF capacitor.
