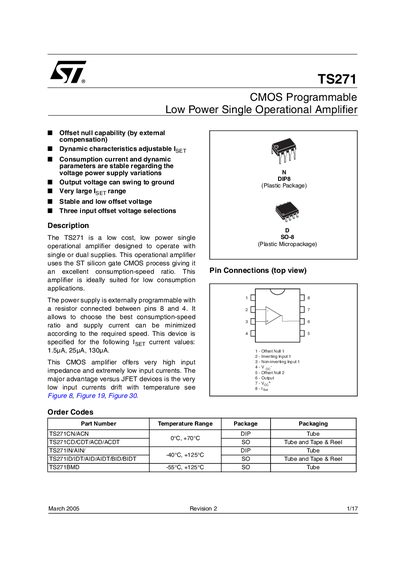

The TS271 is a low cost, low power single operational amplifier designed to operate with single or dual supplies. This operational amplifier uses the ST silicon gate CMOS process giving it an excellent consumption-speed ratio. This amplifier is ideally suited for low consumption applications.
The TS271 is a low‑cost, low‑power single operational amplifier designed for single or dual supply operation. It uses ST's silicon‑gate CMOS process, offering a high input impedance, very low input currents, and offset‑null capability via external compensation.
The document lists absolute maximum ratings, detailed electrical characteristics such as supply voltage range, input offset voltage, gain‑bandwidth product, and supply current, as well as mechanical dimensions for the SO‑8, DIP‑8, and plastic micropackage options. Revision history and ordering information are also included.
| Supply Voltage Range | 3 V to 16 V |
|---|---|
| Gain Bandwidth Product | ≈ 400 MHz |
The TS271 operates with a supply voltage from 3 V up to 16 V.
The gain‑bandwidth product is approximately 400 MHz.
