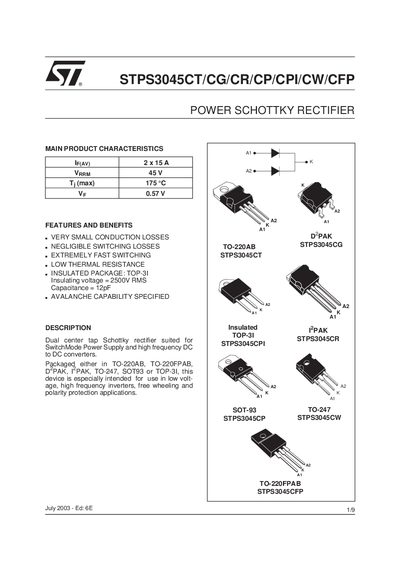

STPS3045CT/CG/CR/CP/CPI/CW/CFP is ST's dual center tap Schottky rectifier, rated at 2 x 15 A and 45 V, with very low conduction losses, negligible switching losses, extremely fast switching speed and low thermal resistance. This device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. It is available in TO-220AB, TO-220FPAB, D2PAK, I2PAK, TO-247, SOT93 or TOP-3I packages.
The STPS3045 series offers dual‑center‑tap Schottky rectifiers designed for switch‑mode power supplies and high‑frequency DC‑to‑DC converters. It provides very low conduction losses, negligible switching losses, fast switching and low thermal resistance.
The device is available in multiple packages (TO‑220AB, TO‑220FPAB, D2PAK, I2PAK, TO‑247, SOT‑93, TOP‑3I) and includes detailed thermal resistance, electrical characteristics, and mechanical dimensions for each variant.
| Repetitive peak reverse voltage (VRRM) | 45 V |
|---|---|
| Maximum operating junction temperature (Tj) | 175 °C |
| Available package types | TO‑220AB, TO‑220FPAB, D2PAK, I2PAK, TO‑247, SOT‑93, TOP‑3I |
The device can withstand a repetitive peak reverse voltage of 45 V.
It is offered in TO‑220AB, TO‑220FPAB, D2PAK, I2PAK, TO‑247, SOT‑93 and TOP‑3I packages.
The recommended torque value for the TO‑220AB package is 0.55 N·m.
