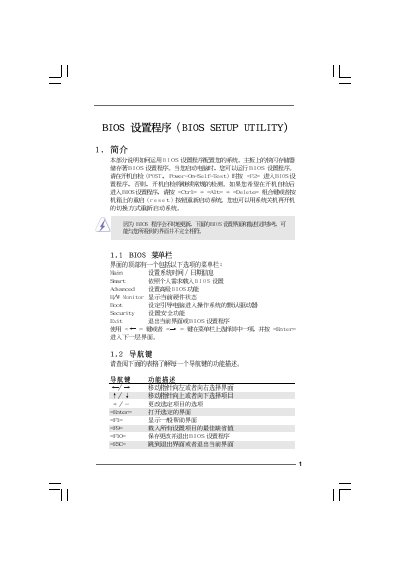

This is a BIOS setup document for P43ME P1.00 motherboard, which provides detailed instructions on how to set up the motherboard.
This manual provides step‑by‑step instructions for navigating the BIOS Setup Utility on the ASRock P43ME motherboard. It covers the main menu, advanced options, CPU configuration, chipset settings, memory timing, and hardware health monitoring.
Key functions such as loading default settings (F9), saving and exiting (F10), password management, and boot device selection are described, along with detailed tables for DRAM timing, RCOMP, and DLL skew settings.
| BIOS Version | v02.54 |
|---|---|
| Processor Type | Intel (R) CPU |
| Processor Speed | 3.00 GHz |
Press F9 to load the default BIOS settings.
Press F10 to save the current settings and exit the BIOS.
Enter the Security menu, select Change Supervisor Password, and follow the prompts.
In the Boot Settings menu, set the 1st Boot Device to the desired drive (e.g., Hard Disk Drive).
