This is a BIOS setup screenshot of a motherboard, which contains system time, date, CPU model, CPU frequency, memory size, cache size, etc.

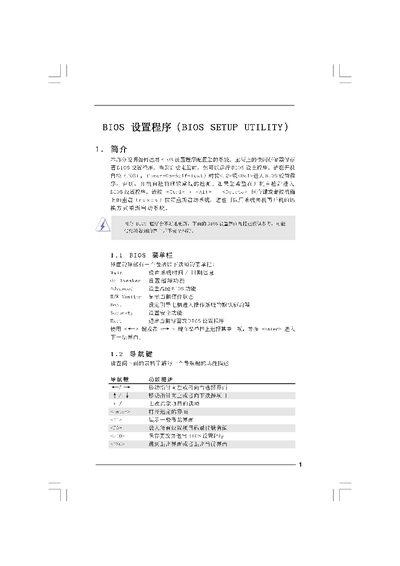

The BIOS Setup Utility manual provides step‑by‑step instructions for navigating the main BIOS screens, adjusting hardware monitoring, boot order, security settings, and advanced CPU and memory options. It also covers the Instant Flash tool for updating the BIOS firmware on ASRock motherboards.
Each section describes the purpose of the menu items, the available choices, and the impact of changing settings such as CPU ratio, DRAM timing, voltage controls, and power‑saving features. Safety warnings are included to prevent system instability caused by incorrect configuration. This manual is written in Chinese.
| Processor Speed | 3066 MHz |
|---|---|
| Total Memory | 204 MB |
