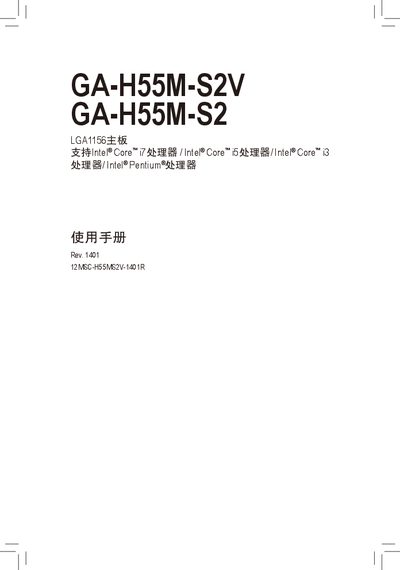

GA-H55M-S2V/GA-H55M-S2 LGA1156 motherboard supports Intel® Core™ i7 processor / Intel® Core™ i5 processor/ Intel® Core™ i3 processor/ Intel® Pentium® processor user manual, introduces the hardware installation and BIOS program settings of the motherboard.
This manual provides step‑by‑step instructions for installing the GA‑H55M‑S2V motherboard, including CPU, memory, expansion cards and peripheral connections. It also details BIOS configuration options, driver installation procedures, and unique Gigabyte features such as Xpress Recovery and EasyTune.
Additional sections cover troubleshooting, warranty information, and contact details for Gigabyte technical support worldwide. This manual is written in Chinese.
| CPU Socket | LGA1156 |
|---|---|
| Memory Type | DDR3 1666/1333/1066/800 MHz, Dual Channel |
| SATA Ports | 6 × SATA 3 Gb/s |
| USB Ports | 12 × USB 2.0 |
| Audio Codec | Realtek |
It uses an LGA1156 socket that supports Intel Core i7, i5, i3 and Pentium processors.
The board supports DDR3 memory up to 1666 MHz, also 1333, 1066 and 800 MHz, in dual‑channel configuration.
The motherboard provides twelve USB 2.0 ports.
Warranty details are included on the warranty card (page 79) and the manual lists Gigabyte’s global support contacts.
