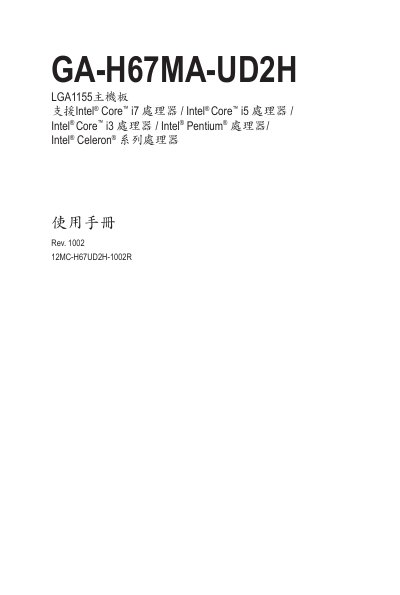

GIGABYTE GA-H67MA-UD2H LGA1155 main-board Manual

GA-H67MA-UD2H LGA1155 motherboard user manual, includes hardware installation and BIOS configuration settings.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 112
File format: PDF
File size: 17.3 MB
Published: 09 April, 2012
Updated: 30 September, 2023
Models: LGA1155, GA-H67MA-UD2H
MD5 checksum: 1ECA89EE07F0DA5D9A78D0C3746E66A0
PDF: GIGABYTE GA-H67MA-UD2H LGA1155 main-board Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the GA‑H67MA‑UD2H motherboard, configuring the BIOS, and connecting peripherals. It includes detailed sections on CPU installation, memory modules, storage devices, and power management.

Additional chapters cover integrated peripherals, advanced BIOS features, PC health monitoring, and troubleshooting tips, helping users get the most out of their Gigabyte motherboard. This manual is written in Chinese.

What's inside

CPU Installation
Memory Installation
BIOS Setup
Integrated Peripherals
Power Management
PC Health Status
Advanced BIOS Features
Standard CMOS Features
Load Optimized Defaults
Save & Exit Setup

Specifications

CPU Socket	LGA1155
Supported CPUs	Intel® Core i7 / i5 / i3 / Pentium / Celeron
Memory Type	DDR3 1333/1066/800 MHz, non‑ECC
SATA Ports	2 × SATA 6 Gb/s, 4 × SATA 3 Gb/s
LAN	Realtek RTL8111E, 10/100/1000 Mbit

Frequently asked questions

What CPU socket does the GA‑H67MA‑UD2H motherboard use?

It uses an LGA1155 socket for Intel processors.

Which Intel CPU families are supported by this motherboard?

The board supports Intel® Core i7, i5, i3, Pentium and Celeron processors.

How many SATA ports are available and what speeds do they support?

There are two SATA 6 Gb/s ports and four SATA 3 Gb/s ports.
