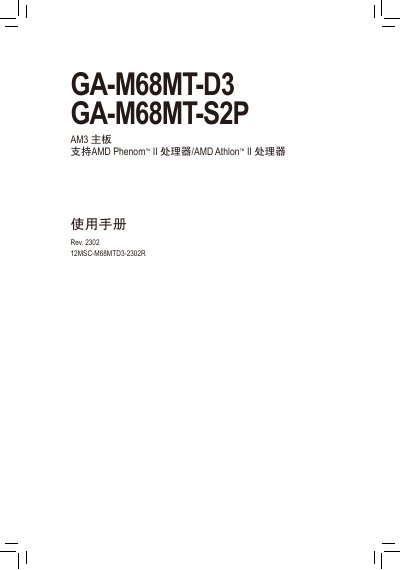

GA-M68MT-D3/GA-M68MT-S2P AM3 motherboard user manual, introduces the product's detailed specifications and usage methods.
This manual covers the GA-M68MT-D3 and GA-M68MT-S2P AM3 motherboards, detailing hardware installation, BIOS setup, driver installation, and regulatory information. It is intended for users building or servicing systems with AMD Phenom™ II or Athlon™ II processors.
Key sections include hardware installation procedures, connector and jumper descriptions, BIOS program settings, driver installation guidance, and an appendix with legal and environmental statements. The document also lists product specifications such as supported CPUs, memory, expansion slots, and networking features. This manual is written in Chinese.
| CPU Socket | AM3 |
|---|---|
| Supported CPUs | AMD Phenom™ II, AMD Athlon™ II |
| Memory Slots | 2 x 1.5V DDR3 DIMM, up to 8 GB |
| Chipset | NVIDIA® GeForce 7025 / nForce 630a |
| Audio Codec | Realtek ALC888B |
| Network Controller | Realtek RTL8211CL 10/100/1000 Mbit |
| PCI Express Slots | 1 × PCIe x16, 1 × PCIe x1 |
| PCI Slots | 2 × PCI |
| SATA Ports | 4 × SATA 3Gb/s (supports RAID 0/1/5/10/JBOD) |
| Form Factor | Micro ATX, 24.4 cm × 22.5 cm |
They support AMD Phenom™ II and AMD Athlon™ II processors that use the AM3 socket.
The board has two 1.5 V DDR3 DIMM slots and can accommodate up to 8 GB of RAM.
A Realtek RTL8211CL controller provides 10/100/1000 Mbit Ethernet connectivity.
It follows the Micro ATX form factor with dimensions of 24.4 cm × 22.5 cm.
