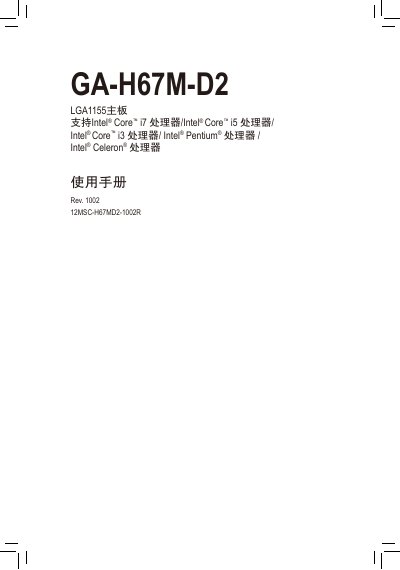

GA-H67M-D2 LGA1155 motherboard user manual. This manual introduces the hardware installation, BIOS program settings and driver installation methods of the motherboard.
This user manual guides users through hardware installation, BIOS setup, driver installation and unique features of the Gigabyte GA-H67M-D2 motherboard. It includes safety precautions, component diagrams and detailed instructions for each installation step.\n\nThe document also lists the technical specifications, supported CPUs, memory types, expansion slots, audio and network interfaces, as well as troubleshooting and service information for the board. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported processors | Intel® Core™ i7, i5, i3, Pentium®, Celeron® |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Memory type | DDR3 1333/1066/800 MHz, non‑ECC |
| Audio codec | Realtek ALC888B |
| Network controller | Realtek RTL8111E 10/100/1000 Mbit |
| USB ports | Up to 14 USB 2.0/1.1 ports |
It uses an LGA1155 socket for compatible Intel processors.
The board has two DDR3 DIMM slots that can hold up to 16 GB of memory.
The motherboard includes a Realtek ALC888B audio codec.
