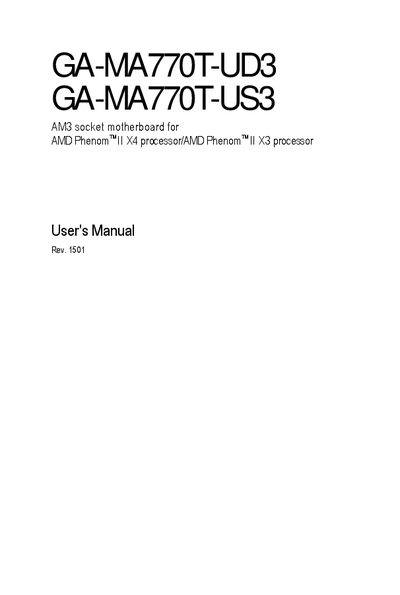

This user manual provides detailed information on the GA-MA770T-UD3/GA-MA770T-US3 motherboard, including installation instructions, specifications, and feature descriptions.
This manual covers the GA-MA770T-UD3 and GA-MA770T-US3 AM3 socket motherboards. It includes hardware installation steps, BIOS configuration, driver installation, and details on unique features such as Xpress Recovery and EasyTune.
Safety and regulatory compliance are addressed, with references to EN and FCC standards, and contact information for global technical support. The document also lists box contents, motherboard layout, and provides troubleshooting guidance.
| CPU socket | AM3 |
|---|---|
| Memory architecture | Dual Channel DDR3 |
| PCI Express slots | PCI Express x16 |
| SATA ports | 6 SATA 3Gb/s |
| USB ports | 12 USB 2.0 ports |
The revision number appears as "REV: X.X", for example "REV: 1.0".
The box contents are listed on page 6 under the "Box Contents" section.
