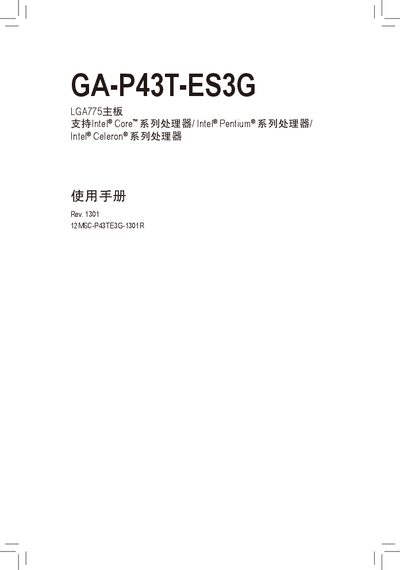

GIGABYTE GA-P43T-ES3G LGA775 motherboard Manual

GA-P43T-ES3G LGA775 motherboard user manual, introducing the hardware installation and BIOS program setup of the motherboard

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 88
File format: PDF
File size: 33 MB
Published: 09 April, 2012
Updated: 30 September, 2023
Model: LGA775
MD5 checksum: D9DD6F265B77F642CCABF7709E5DD4FF
PDF: GIGABYTE GA-P43T-ES3G LGA775 motherboard Manual PDF

About this manual

This manual covers the hardware installation steps for the GA-P43T-ES3G LGA775 motherboard, including CPU, memory, and peripheral installation. It also details BIOS configuration, driver installation, and the unique features such as Q‑Flash BIOS update and EasyTune energy‑saving tools.

Additional sections describe audio I/O settings, troubleshooting tips, and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.

What's inside

Hardware Installation
BIOS Setup
Driver Installation
Unique Features
Audio Settings
Troubleshooting
Appendix

Specifications

Memory Type	DDR3 (dual‑channel)
Memory Speed	1600/1333/1066 MHz
PCI Express Slots	1 × PCI‑Express x16, 1 × PCI‑Express x1
SATA Ports	SATA 3 Gb/s (2 ports)

Frequently asked questions

How can I update the BIOS on this motherboard?

You can use the Q‑Flash utility for a quick BIOS refresh or the online BIOS update feature described in the manual.

What memory configurations does the board support?

The board supports dual‑channel DDR3 memory at 1600, 1333 or 1066 MHz.
