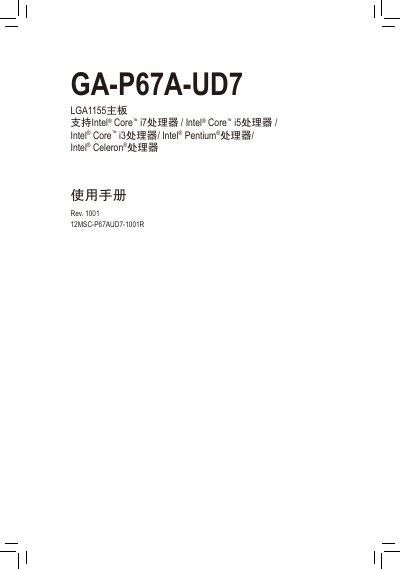

Gigabyte GA-P67A-UD7 LGA1155 Motherboard User Manual

GA-P67A-UD7 LGA1155 motherboard user manual, introduces the hardware installation and BIOS program settings

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 128
File format: PDF
File size: 48.6 MB
Published: 09 April, 2012
Updated: 30 September, 2023
Model: LGA1155
MD5 checksum: D9706E6C514755A23AA8180FE8E268BB
PDF: Gigabyte GA-P67A-UD7 LGA1155 Motherboard User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the GA‑P67A‑UD7 motherboard, including CPU and cooler mounting, memory module placement, and connecting expansion cards and storage devices. Safety precautions, anti‑static handling, and wiring diagrams are included to help users avoid damage during assembly.

The guide also explains BIOS configuration, dual‑BIOS features, driver installation, and the board’s unique utilities such as Q‑Flash, @BIOS, Xpress Recovery and Smart 6. Appendices contain troubleshooting codes, service statements and worldwide support contacts. This manual is written in Chinese.

What's inside

Hardware Installation
CPU and Cooler Installation
Memory Installation
PCI/PCIe Slot Installation
SATA Expansion and RAID
Rear I/O Connectors
LED Indicators and Buttons
Jumpers and Switches
BIOS Settings
Driver Installation

Specifications

CPU Socket	LGA1155, supports Intel Core i7/i5/i3, Pentium and Celeron
Audio Codec	Realtek ALC889, HD audio, 2/4/5.1/7.1 channels, Dolby Home Theater
Network	2× Realtek RTL8111E, 10/100/1000 Mbit, supports LAN teaming
Form Factor	ATX, 30.5 cm x 24.4 cm

Frequently asked questions

Which CPUs are compatible with the GA-P67A-UD7 motherboard?

The board supports Intel LGA1155 processors, including Core i7, i5, i3, Pentium and Celeron models.
