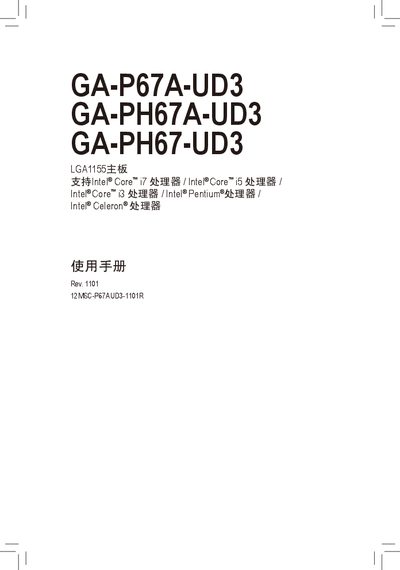

This document describes the features and characteristics of GA-P67A-UD3, GA-PH67A-UD3, and GA-PH67-UD3 LGA1155 motherboards, including the supported processor types and information about the user manual.
This manual provides step‑by‑step hardware installation instructions, including CPU, memory, cooling fan and expansion card mounting for the GA‑P67A‑UD3, GA‑PH67A‑UD3 and GA‑PH67‑UD3 LGA1155 motherboards. Safety precautions, static‑discharge handling and connector details are covered to help avoid damage during assembly.
The document also explains BIOS configuration, driver installation, unique Gigabyte features such as Xpress Recovery2, Q‑Flash, EasyTune 6 and Dynamic Energy Saver 2, and includes an appendix with troubleshooting, SATA configuration and service contact information. This manual is written in Chinese.
| CPU Socket | LGA1155, supports Intel Core i7/i5/i3, Pentium, Celeron |
|---|---|
| Chipset | Intel P67 / H67 |
| Memory Slots | 4 DDR3 DIMM slots, up to 32 GB |
| Supported Memory Speed | DDR3 2133/1866/1600/1333/1066 MHz |
| Audio Codec | Realtek ALC892/889 |
| Network Interface | Realtek RTL8111E 10/100/1000 Mbit |
The motherboard supports LGA1155 Intel Core i7, i5, i3, Pentium and Celeron processors.
It has four DDR3 DIMM slots and can accommodate up to 32 GB of RAM.
The board uses a Realtek ALC892/889 audio codec.
