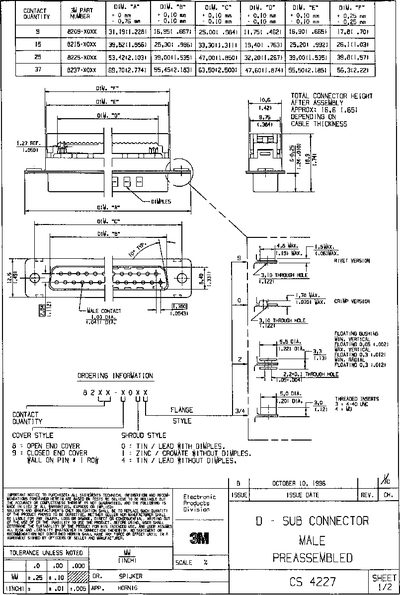

This specification sheet describes the multipurpose pin connector CS 4227, covering its physical dimensions, material construction, and electrical characteristics. It is intended for designers and engineers who need detailed data for integration into assemblies.
Key features include a contact spacing of 0.0545 × 0.112 in, glass‑reinforced polyester insulator, steel shell with tin plating, copper‑alloy contacts with selective gold over nickel, and ratings such as 1 A current, 50 N minimum push‑out force, and operation from –67 °F to +221 °F.
| Contact spacing | 0.0545 × 0.112 in (1.384 mm × 2.84 mm) |
|---|---|
| Insulator material | Glass reinforced polyester |
| Flammability rating | UL 94V-0 |
| Contact material | Copper alloy |
| Contact plating | Selective gold over nickel |
| Wire accommodation | 26 AWG solid or stranded |
| Push‑out force | ≥ 50 N |
| Withstanding voltage | 1000 VRMS @ sea level |
| Temperature rating | -67 °F to +221 °F (-55 °C to +105 °C) |
The CS 4227 connector has a contact spacing of 0.0545 × 0.112 in (1.384 mm × 2.84 mm).
A minimum push‑out force of 50 N is required.
It can operate from –67 °F to +221 °F (–55 °C to +105 °C).
