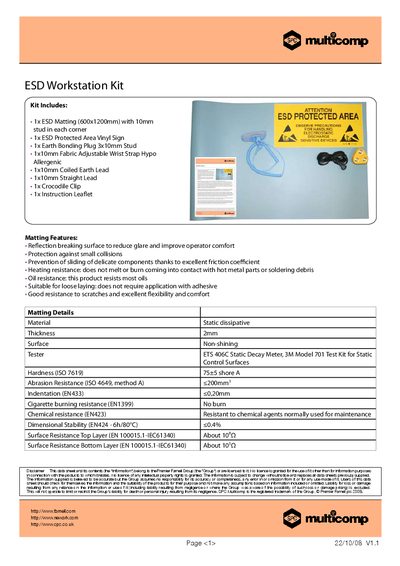

This data sheet contains detailed information about ESD Workstation Kit Matting Details, including material, thickness, surface, etc.
The ESD Workstation Kit includes a 600 × 1200 mm static‑dissipative mat, an ESD protected‑area vinyl sign, an earth‑bonding plug with 3 × 10 mm stud, a fabric adjustable wrist strap, coiled and straight earth leads, a crocodile clip, and an instruction leaflet. The mat features a non‑shining surface, high friction to prevent sliding, heat and oil resistance, and good scratch resistance.
Technical details list the mat material as static‑dissipative, 2 mm thick, with a hardness of 75+5 shore A, surface resistance of about 108 Q (top layer) and 10 Q (bottom layer), and compliance with various EN standards for abrasion, indentation, and chemical resistance. The wrist strap and leads have defined resistivity values for reliable grounding.
| Material | Static dissipative |
|---|---|
| Thickness | 2 mm |
| Surface | Non‑shining |
| Hardness (ISO 7619) | 75+5 shore A |
| Abrasion Resistance (ISO 4649, method A) | <200 mm? |
| Indentation (EN 433) | <0.20 mm |
| Cigarette burning resistance (EN 1399) | No burn |
| Surface Resistance Top Layer (EN 100015.1‑IEC61340) | About 108 Q |
| Surface Resistance Bottom Layer (EN 100015.1‑IEC61340) | About 10 Q |
| Wrist‑band surface resistivity | 10 °O |
| Band resistance (Top side) | <10 °Ohms |
| Coiled earth lead resistivity | 1 MΩ ± 10 % |
| Straight earth lead resistivity | 1 MΩ ± 10 % |
The top layer surface resistance is about 108 Q.
The matting hardness is 75+5 shore A according to ISO 7619.
